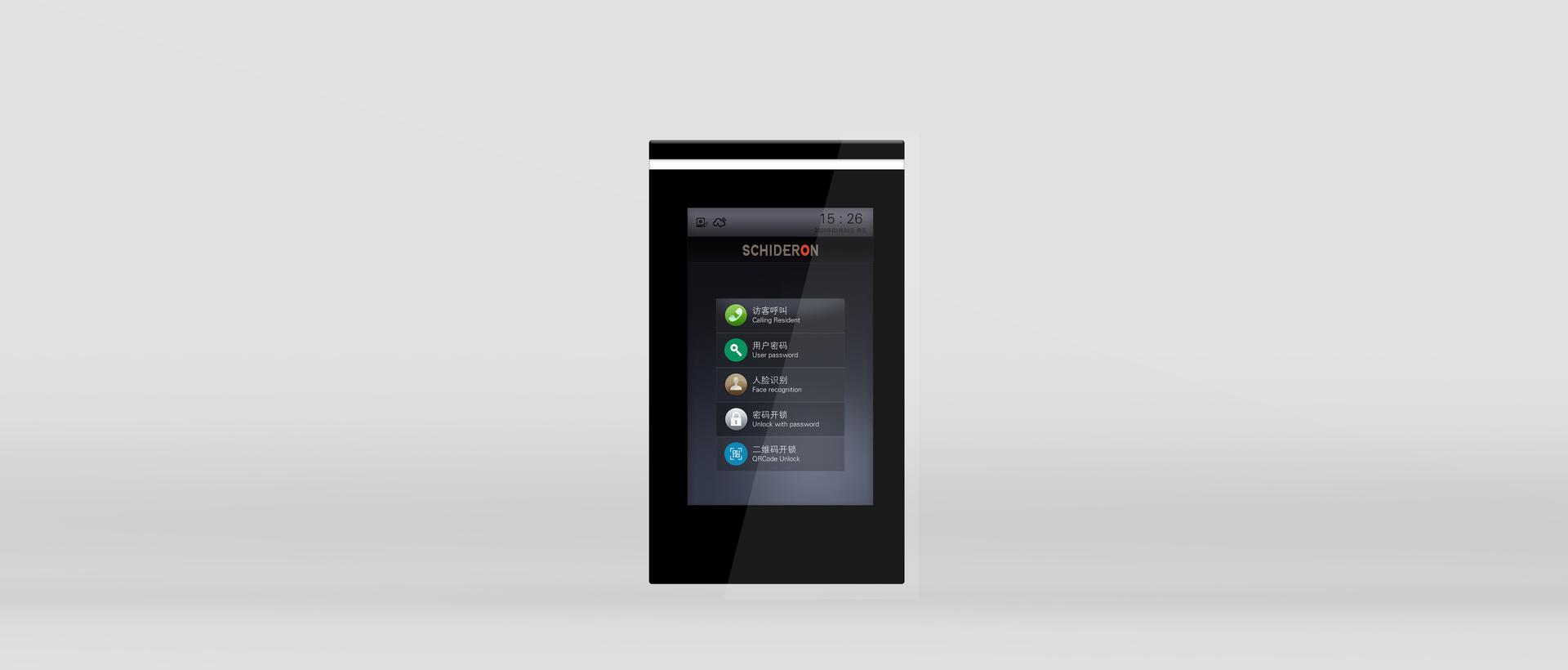

DDT-1060-ZH is a color video intercom unit door machine operated by 10.1-inch capacitive screen touch screen. The LCD display resolution is up to 1280×800. High-definition digital camera with clear camera quality. The new noise suppression technology can achieve high-reduced sound quality in different environments. This machine uses SCHIDERON's X7 series CPU chip, Android system architecture, CPU main frequency up to 1.2GHZ, memory is 1G DDR-II. It has the advantages of fast operation speed, high quality of intercom audio and video, low power consumption of the whole chip and high running stability to meet the needs of future upgrades. The interface operation instructions are simple and clear, making it easier for users to use. Support public password unlocking, user private password unlocking, IC card access control card unlocking, guest message viewing, call management center and other functions. Overall performance and technical indicators are at the leading level in the industry.


Main function introduction

·Calling indoor terminal ·Video and voice calls with the management center ·Indoor monitoring, management center monitoring ·Support linkage control with elevator ·High-definition camera, night LED fill light · Built-in IC access control module, support for card unlocking · Authorized card issuance through the management center ·Support door magnetic (on/off) status detection and delay alarm ·Support normally open / normally closed type electronic lock access


System : Android NET protocol : TCP / IP CPU : X7

Power : DC 12V Working current : ≤250mA Current : ≤100mA

Temperature : -20℃~+55 ℃ Operating HUM : 0%~93% Material : Tempered glass mirror

Webcam : 1.3 million pixels Ringing : Electronic bell ≥70dB Frequency : 1.2G Hz

RAM : 1G DDR-II ROM : 8GB Installation : Embedded

Thickness : 8mm Size : 339*190*28.2(mm)

Parameter file - outdoor door intercom

DDT-1060-ZH-X7(Simplified Chinese) 2018 / 07 / 19 3.46M

DDT-1060-ZH-X7(Traditional Chinese) 2018 / 07 / 19 3.44M

Installation instructions - visual intercom

DDT-1060-ZH-Simplified 2019 / 09 / 18 1.10M
