Radar sensing, Bluetooth connection, committed to creating a low-carbon future
ESG

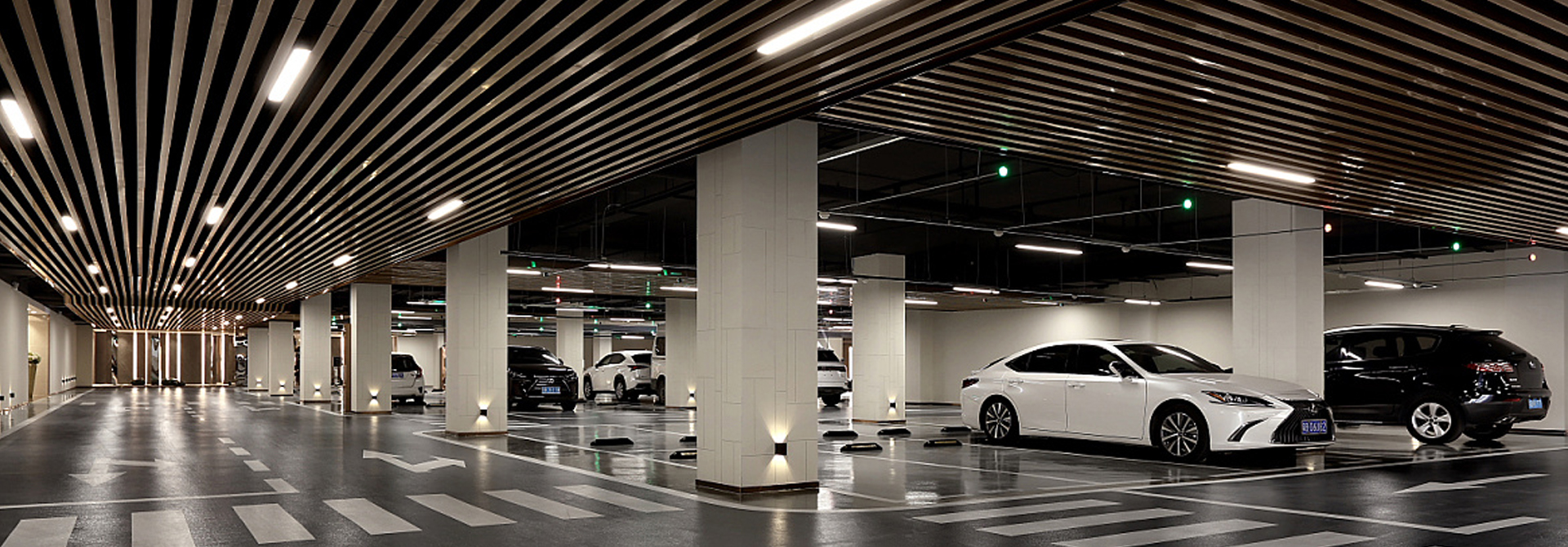

Parking Lot
Our smart Bluetooth mesh LED T8 tube is equipped with built-in radar sensing function, which can save over 80% of energy compared to commonly used 18W LED tubes on the market. The active sensing system ensures that the lights are only used when needed and enables adaptive dimming or switching. Significantly reduce the power consumption of large facilities such as parking lots. Replacing 1.000 traditional 18W LED tubes with our smart T8 solution within a year can save over 100000 kWh of electricity and reduce over 80 tons of carbon dioxide emissions, equivalent to planting over 3600 trees. Smart lighting not only saves energy, but also actively creates a more environmentally friendly future.
Bluetooth MESH

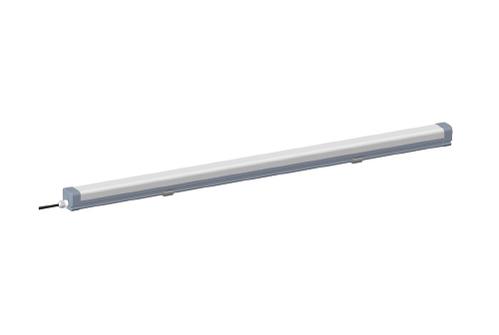

Microwave Radar T8 Lamp
Bluetooth MESH & Microwave Radar T8 lamp is a Bluetooth & microwave radar controlled T8 lighting prod uct developed by SCHIDERON. It consists of a low-power wireless Bluetooth module, a 5.8G microwave radar module and a power drive. By the Tuya Smart APP, users can add devices, reset devices, control third parties and control Bluetooth (single point &Mesh) group, which is suitable for intelligent commercial lighting and other applications.
GET INTO
Fast Deployment of
an ESG-Driven Smart Lighting System
Our intelligent Bluetooth mesh LED T8 tube, equipped with built-in radar sensing, delivers over 80% energy saving compared to commonly used 18W LED tubes on the market. By actively sensing occupancy and enabling adaptive dimming or switching, the system ensures light is only used when needed — significantly reducing power consumption in large-scale installations like parking lots...

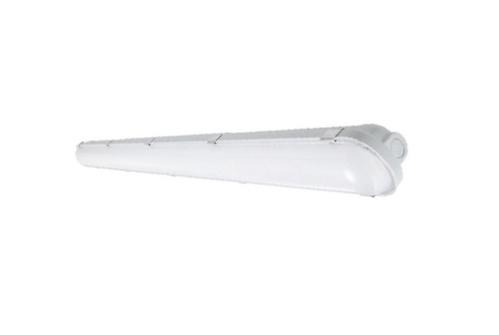

SDR-J5136K-1.5M-40W-BLE
Input range: 100-240VAC/50~60HZ
Color temperature: 4000K
Dimming range 1-100% Input range: 100-240VAC/50~60HZ
Color temperature: 4000K
Dimming range 1-100%
Power supply: 40W ± 10% Size: L1500xW80xH76mm Input voltage: 100-240VAC
Input frequency range: 50-60HZ Power factor (Typ.): PF ≥ 0.99/100V PF ≥ 0.96/240V
Full load efficiency (Typ.): 88% AC current (Typ.): 0.4A/100VAC 0.17A/240VAC
Color temperature: 4000K Color rendering index: Ra>80 Luminous flux: 4700lm Luminous efficiency: 118lm/W
IP rate: IP65 Beam angle: 125 ° Lifespan:>50000h Operating temperature: -25~+55 ℃ (Tc max=70 ℃)
GET INTO
Seamless Control with
Smart Connectivity and ESG Intelligence
Our smart LED T8 solution offers flexible control options to suit any installation environment. It can be managed remotely via cloud platform or mobile app through an Internet-connected gateway, or operated locally via Bluetooth using a smartphone app or handheld remote control. Designed with both energy intelligence and operational ease, the platform features real-time energy consumption monitoring and fault-tracking, enabling effortless ESG reporting and streamlined facility management. Whether deployed in a single site or across multiple locations, our solution empowers businesses to reduce energy use, lower maintenance costs, and meet sustainability goals with confidence.
