CODE:DDP-805NC-X7

DETAILS

Economic

Market guidance price: ¥8000

Video intercom

· Wall machine incoming call · Unit door incoming call · Small doorway incoming call · Management center call / two-way dialogue · Two-way voice dialogue and video intercom · Remote unlocking

Home Security

· Emergency help function · One-touch arming from home · Alarm information sent to the management center · Code alarm · Customized private unlock password, security password and password

Alarm Type

· Emergency button ·Smoke alarm · Gas leak alarm · Gate magnetic· Window magnetic field · Infrared double detector · Glass breakage · Prevention and dismantling alarm

Smart Home

· Scene Control · Air Conditioning Control · Lighting Control · Curtain Control

Other function

· Community information, private information push · Three languages (Simplified / Traditional / English)

SPEC

Touch screen : Capacitive Resolution : 1280 × 800 System : Android 4.4

NET protocol : TCP / IP Bus : S-Net CPU : X7 four core

Display : 8 Power : DC 12V Working current : ≤280mA

Current : ≤200mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : Aluminum alloy + ABS Webcam : 300,000 pixels (optional) Ringing : Electronic bell ≥70dB

Frequency : 1G Hz RAM : 1GB DDR-Ⅲ ROM : 8GB EMMC

Installation : Embedded Thickness : 7mm Size : 248*180*23(mm)

FEATURES

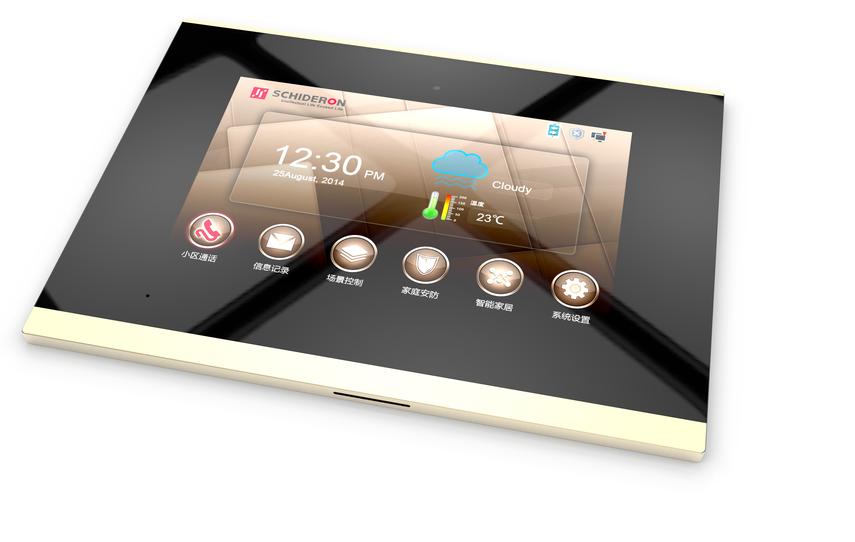

Ddp-805nc-x7 is a wall mounted color hands-free video intercom with multiple functions.An 8-inch LCD display screen with a resolution of 1280 x 800.With the gold-plated G+G glass capacitor touch, video encoding and decoding adopts h. 264, so it can support hd two-way video intercom.The chip adopts SCHIDERON's X7 core board series CPU chip and Android 4.4 system architecture. It has the advantages of fast operation, high stability and low overall power consumption, and supports online upgrade.Comprehensive security function -- the system comes with 16 independent defense areas, which can be connected with intrusion, gas, smoke and other sensor devices.When the household is not at home, the visitor's photo is automatically saved for the customer to view at any time.An s-net interface seamlessly connects with SCHIDERON's smart home host and module, and the warm home scene only needs to be activated by one finger.

Parameter file - building intercom

DDP-805NC-X7(Simplified Chinese) 2018 / 06 / 15 3.65M

DDP-805NC-X7(Traditional Chinese) 2018 / 07 / 19 3.59M

Installation instructions - visual intercom

DDP-805NC-Simplified 2018 / 08 / 28 899.86K

DDP-805NC-Traditional 2018 / 08 / 28 551.31K

PRECAUTIONS FOR USE

Price and purchase method

USD:$708
Method of purchase:For purchase, please call 400 612 992, Email message:schideron@schideron.com
