FEATURES

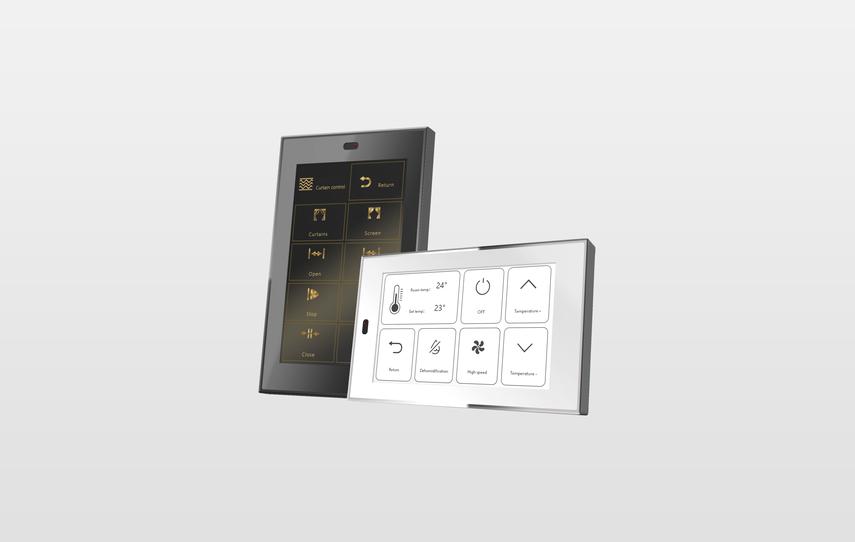

The compact wall-mounted touch screen provided by SCHIDERON has a flat design for homes, hotels, conference rooms, classrooms, courts, etc. It can integrate smart home systems such as lighting, curtains and air conditioners into a touch screen to reduce traditional control. The space was wasted by the panel and the messy wall switch. The SCHIDERON TPC-500 can edit the control interface and control content as required. Simple, convenient controls and icons, instant feedback signals and real-time status displays make modern high-end living simple and exciting. Different control modes such as independent control, multi-combination control and scene mode are embodied in one touch screen. According to the decoration needs, choose the appearance color, production process and so on.

DETAILS

Weak operating voltage

With DC 24V as its operating voltage, power consumption is less than 150mA, making your life more comfortable.

Distance sensing

When the touch screen is in a black screen state, when the human body or the moving object is close to the touch screen, the screen will automatically light up and control operations can be performed.

Interface is editable

Customized according to customer's different needs and decorative styles: control functions, icons and interface styles; perfectly match the overall decorative effect.

Control content is arbitrarily written

Independent control, multi-combination control and scene mode control, according to your needs, you can freely edit the control function of each icon, reflecting the convenience of intelligence.

Distributed Systems

Distributed system design, each touch screen has an independent computing chip (CPU). Has local data processing capabilities and computing capabilities.

Sensors and Energy Savings

An embedded distance sensor allows the touch screen to enter the power saving protection program. When the human body distance is less than 150mm, the screen is automatically activated to a semi-bright state, which is both power saving and intelligent. The TPC-501 comes with a temperature sensor that detects ambient temperature and uploads data to S-Net.

SPEC

DDR3 RAM : 128*2MB Touch screen : Projected capacitive Viewing angle : ±69°HOR, +62°/-64°VER

Illumination : Edgelit LED Brightness : 300nits(cd/m²) Display type : TFT-LCD

Aspect ratio : 15:9WVGA Color depth : 24位 Contrast : 450:1

Resolution : 800 × 480 CPU : ARM® Cortex-A5 Consumption : 150mA

Voltage : 24V Dc±5% Temperature : -10℃-45℃ Storage TEM : -10℃-45℃

Material : PC Humidity : -10%-80%RH Frequency : 833MHz~1GHz

Size : 5 inches; diagonal

Installation Instructions - Touch Screen Series

TPC500-Simplified 2018 / 06 / 28 519.40K

TPC500-Traditional 2019 / 06 / 03 427.16K

Parameter file - touch screen series

TPC500(Simplified Chinese) 2018 / 06 / 15 1.37M

TPC500(Traditional Chinese) 2018 / 07 / 19 2.40M
