Centralized control of APP

HRMS-CP-01 can upload all data (including loop status, energy consumption information, etc.) of the access module in the intelligent lighting system, smart home system or room management system to the intelligent centralized control management system. This can use powerful background processing capabilities to process and organize resource data and improve efficiency. Especially applied to enterprise management, school classrooms, conference studios and other occasions as the convergence node for data transmission.

Communication transmission

S-Net communication mode and TCP/IP communication mode conversion device. As an intermediate control module of intelligent centralized control management system and other regulation control modules. You can use the PC control software to control and configure the module.


The timing function can be configured through software, and you can choose to execute relevant instructions at a certain time of day or week on a specific day:

DIN rail mounting

“Modular” equipment is flexibly installed and applied in the actual environment. The system is equipped with standard 35mm DIN rail mounting, providing convenient installation and maintenance for users.

S-Net bus modular design

The module is designed for the MCU pure hardware architecture and has local data processing and channel control. The overall power consumption of the module is low and the task processing is timely. The module communicates via the bus to ensure the stability and reliability of data transmission. Each module has a corresponding physical address. The DIP dialer can be used to set the address of the module to ensure that each module can operate correctly and accurately receive and execute commands transmitted from the bus.


Agreement type : S-Net Terminals : PA66, UL94-V0, high temperature resistance Temperature : 0°to 40°C

Storage TEM : 0°to 40°C Humidity : 10% to 90% Installation : DIN rail mounting

Size : 135*103*55(mm)

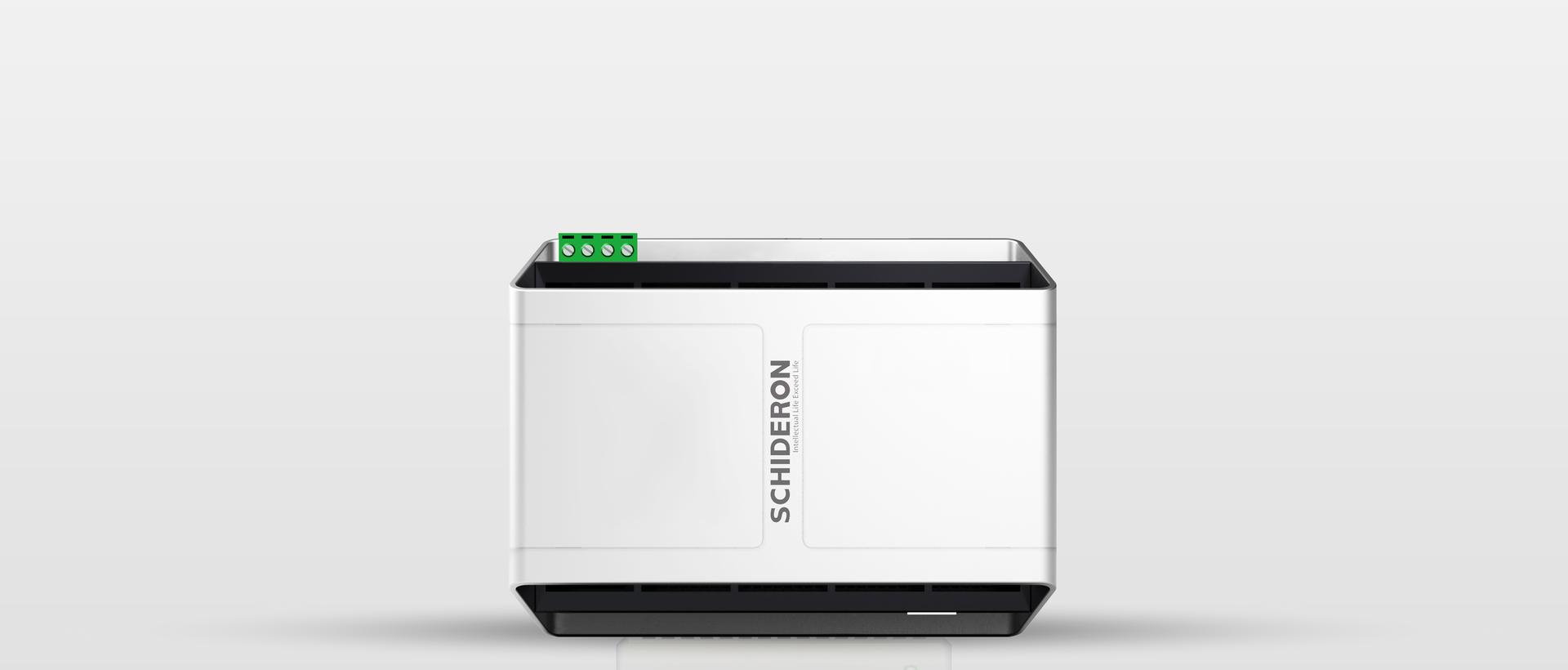

HRMS-CP-01 is one of the media modules provided by SCHIDERON to connect smart lighting system, smart home system and room control system to local area network for communication mode conversion. The module supports control software to preset and control specific scenarios. HRMS-CP-01 uploads the module data to the corresponding intelligent centralized control management system through S-Net for module state management and data statistical analysis. The entire data transmission and equipment control comply with the latest industrial industry standards.

Module Installation Instructions - Control Module Series

CP-01 2019 / 05 / 28 261.39K

CP-01- Traditional 2019 / 05 / 28 186.18K

Parameter file - hotel module series

HRMS-CP-01(Simplified Chinese) 2018 / 06 / 15 911.47K

HRMS-CP-01(Traditional Chinese) 2018 / 07 / 19 1.18M
