FEATURES

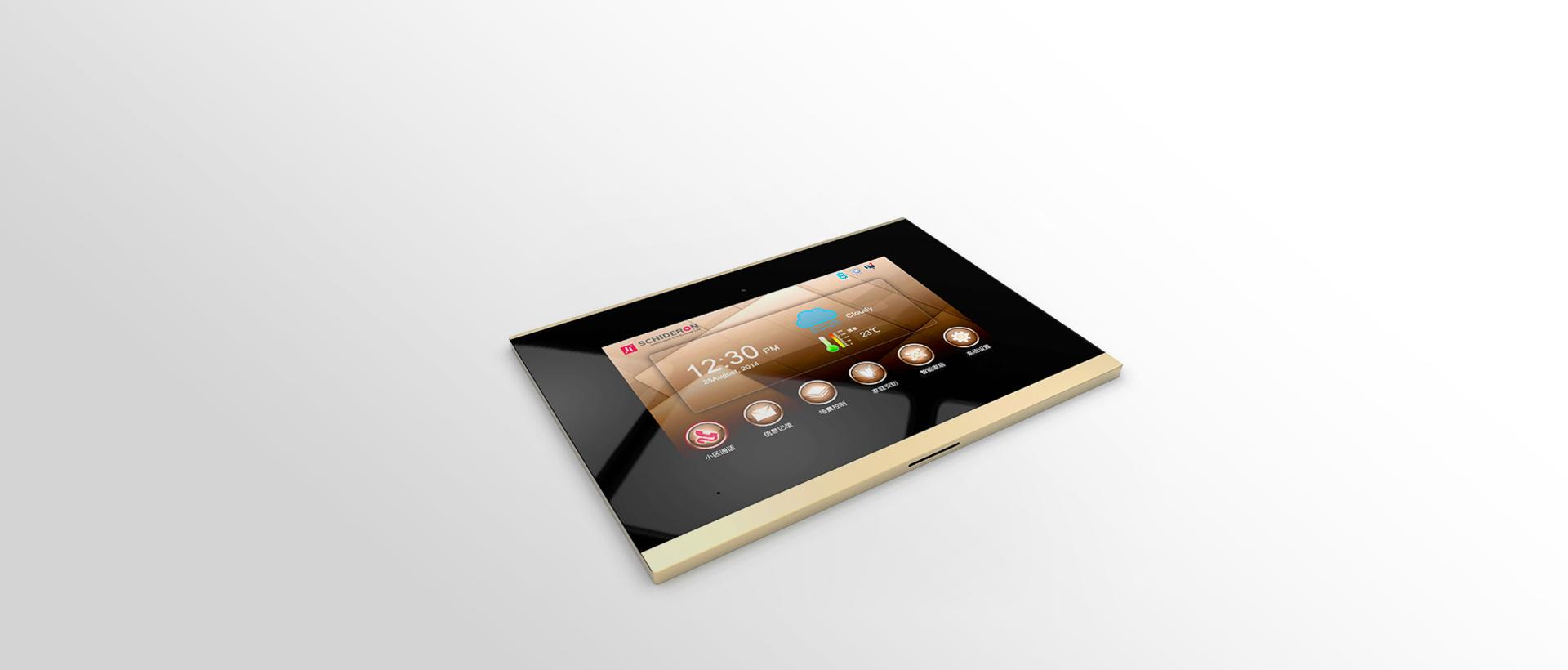

The DDP-1005N-X7 is a wall-mounted color hands-free video intercom indoor phone with multiple functions. It has a 10.1-inch LCD display with a resolution of 1280×800. Using gold-plated G+G glass capacitive touch, the video codec uses H.264 and supports HD two-way video intercom. The chip adopts SCHIDERON's X7 core board series CPU chip and Android 4.4 system architecture. It has the advantages of fast operation speed, high stability and low overall power consumption, and supports online upgrade. Security features are comprehensive - the system comes with 16 independent zones, which can be connected to sensor devices such as intrusion, gas and smoke. When the household is not at home, the visitor photos are automatically saved for customers to view at any time. An S-Net interface seamlessly interfaces with the SCHIDERON smart home mainframe and modules, and the warm home scene is activated by one finger.

DETAILS

Video intercom

· Wall machine incoming call · Unit door incoming call · Small doorway incoming call · Management center call / two-way dialogue · Two-way voice dialogue and video intercom · Unit door machine, small doorway monitor

Home Security

· Emergency help function · One-touch arming from home · Alarm information sent to the management center · Code alarm · Customized private unlock password, security password and password

Alarm Type

· Emergency button ·Smoke alarm · Gas leak alarm · Gate magnetic· Window magnetic field · Infrared double detector · Glass breakage · Prevention and dismantling alarm

Smart Home

· Scene control · Air conditioning control · Lighting control · Curtains control

Other function

· Community information, private information push · Three languages (Simplified / Traditional / English)

SPEC

Touch screen : Capacitive Border materials : Aluminum + ABS Resolution : 1280 × 800

System : Android 4.4 NET protocol : TCP / IP Bus : S-Net

CPU : X7 four core Display : 10.1" TFT LCD (Color) Power : DC 12V

Working current : ≤280mA Current : ≤200mA Temperature : -10℃~+50 ℃

Operating HUM : 20%~85% Material : Aluminum alloy +ABS Webcam : 300,000 pixels (optional)

Ringing : Electronic bell ≥70dB Frequency : 1G Hz RAM : 1GB DDR-Ⅲ

ROM : 8GB EMMC Installation : Embedded Thickness : 7mm

Size : 285*218*23(mm)

Parameter file - building intercom

DDP-1005N-X7(Simplified Chinese) 2018 / 06 / 15 3.67M

DDP-1005N-X7(Traditional Chinese) 2018 / 07 / 19 3.59M

Installation instructions - visual intercom

DDP-1005NC-Simplified 2018 / 08 / 28 966.79K

DDP-1005NC-Traditional 2018 / 08 / 28 550.69K
