Weak operating voltage
With 24V DC as its working voltage, the power consumption is less than 150mA, making your life more comfortable.
When the touch screen is in a black screen state, when the human body or moving object approaches the touch screen, the screen automatically lights up immediately and can perform control operations.
Interface is editable
Customized according to different needs and decorative styles of customers: control functions, icons and interface styles; perfectly match the overall decorative effect.
Control content is arbitrarily written
Independent control, multi-combination control and scene mode control, you can edit the control function of each icon arbitrarily according to your needs, reflecting the convenience of intelligence.
Distributed system design, each touch screen has a separate computing chip (CPU). Have local data processing capabilities and computing power.
Sensors and Energy Savings
An embedded distance sensor enables the touch screen to enter the power saving protection program. When the human body distance is less than 150mm, the screen is automatically activated to a semi-bright state, which is both power saving and intelligent. The TPC-351 also comes with a temperature sensor that detects ambient temperature and uploads data to S-Net.
Touch screen : 3.5”inch Viewing angle : <120° level, <140° vertical Display type : Capacitive
Color depth : 24Bit Agreement type : S-Net Resolution : 480 x 320
Radiat : 9.8BTU/hr Consumption : 12VDC / 240mA，24VDC / 120mA Terminals : PA66
Weight : 168g Temperature : 0°to 45°C Storage TEM : -10℃~80℃
Material : Glass + aluminum alloy Humidity : Frost-free10%~90% RH Frequency : 1GHz
ROM : eMMC 4GB Installation : 86 bottom box Size : 96.6*86*27.6

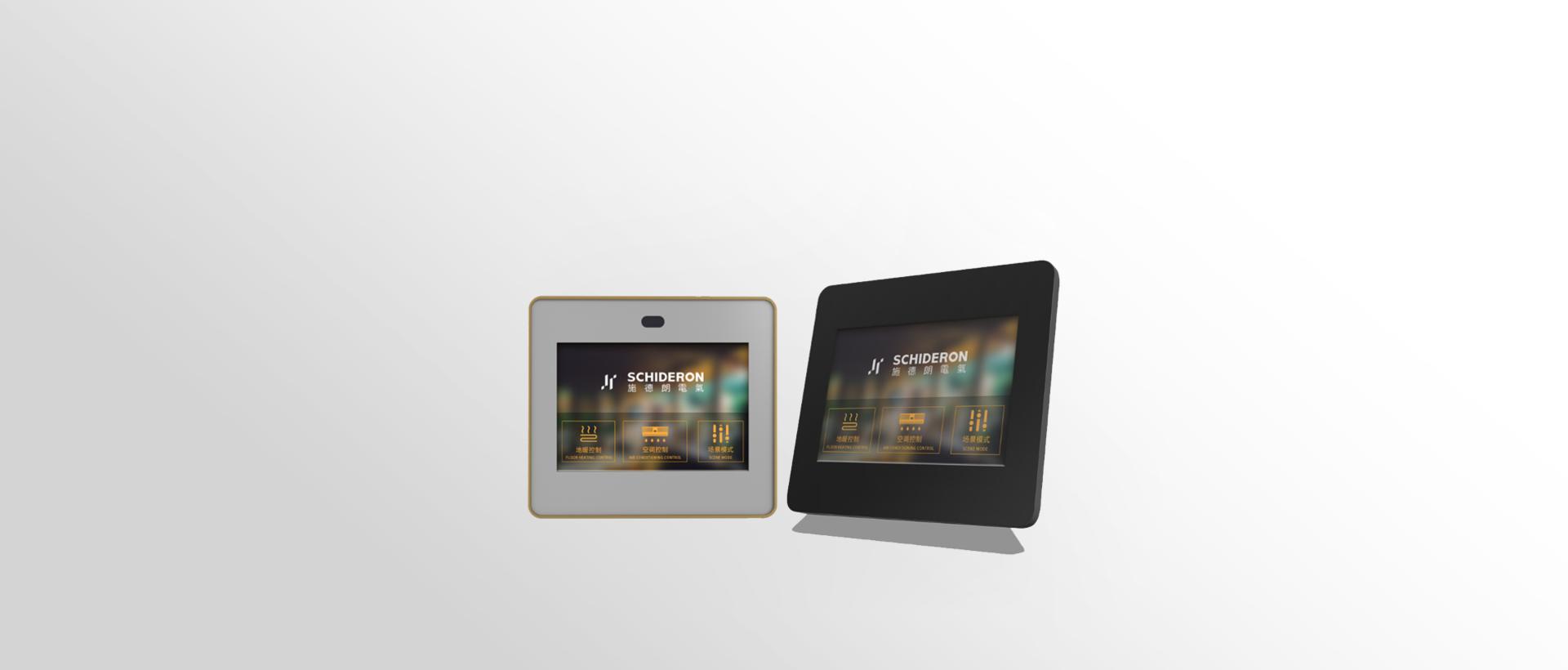

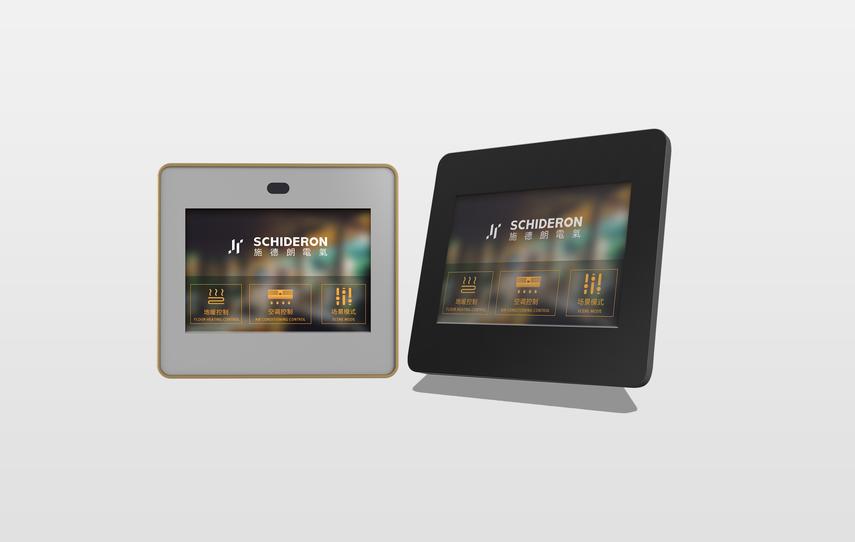

The compact in-wall touch screen provided by SCHIDERON has a flat design for homes, hotels, conference rooms, classrooms, courts, etc. It can integrate smart home systems such as lighting, curtains and air conditioners into a touch screen to reduce traditional control. The space was wasted by the panel and the messy wall switch. The SCHIDERON TPC-350 can be used to edit the control interface and control content as required. Simple, convenient controls and icons, instant feedback signals and real-time status displays make modern high-end living simple and exciting. Different control modes such as independent control, multi-combination control and scene mode are embodied in one touch screen. According to the decoration needs, choose the appearance color, production process and so on.
TPC350-Simplified 2019 / 06 / 03 447.80K
TPC350-Traditional 2019 / 06 / 03 346.61K
TPC350 (Chinese simplified) 2019 / 05 / 17 1017.96K
TPC350 (Chinese Traditional) 2019 / 05 / 17 924.14K
