FEATURES

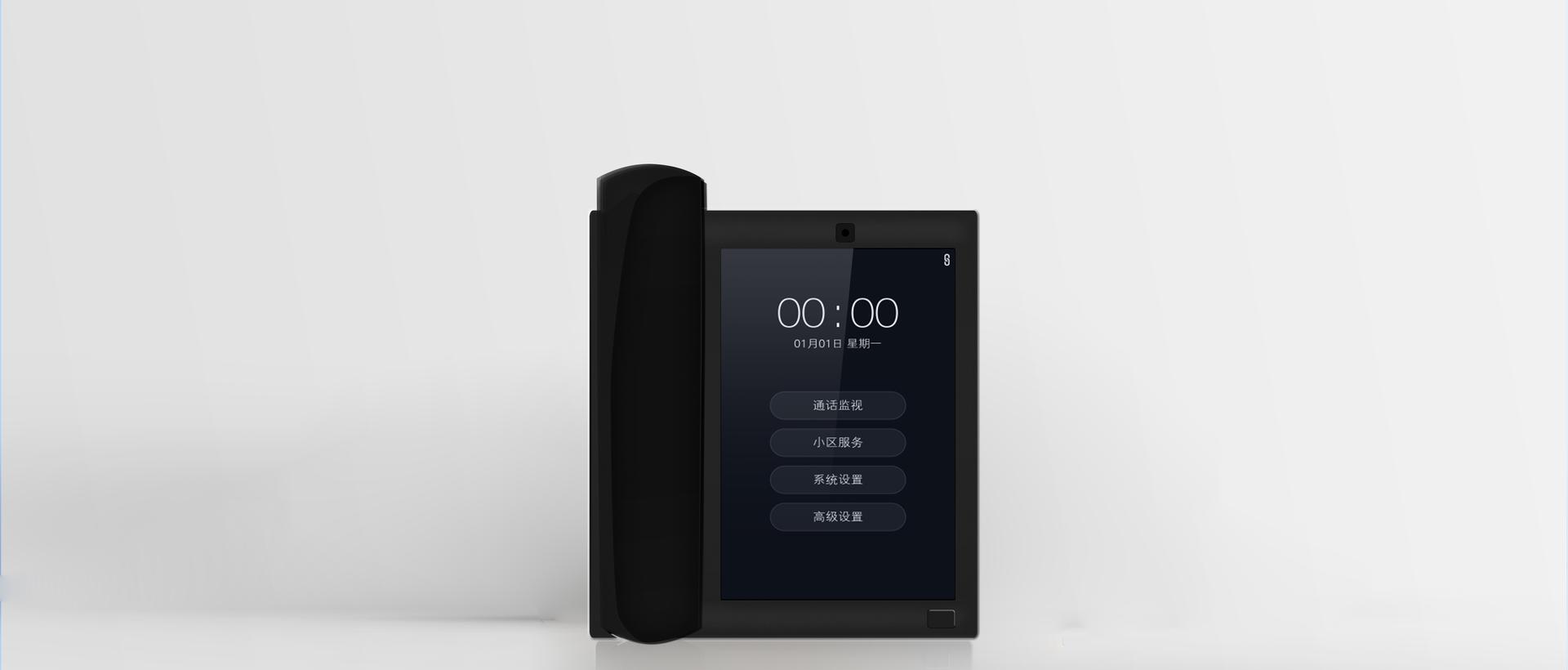

The DFMASTER-ZH is a multi-function color desktop management machine. It adopts 8-inch TFT true color LCD capacitive display with a resolution of 800×1280. Using gold-plated G+G glass capacitive touch, the video codec uses H.264 and supports HD two-way video intercom. The chip adopts Android Android system X7 series CPU chip, full digital network system architecture, has the advantages of fast operation speed, high stability, low overall power consumption, etc., and supports online upgrade.

DETAILS

Product Features 1

Android Android system architecture, fast operation, high stability, and flexibility

Product Features 2

Memory up to 8G Nand Flash

Product Features 3

8-inch TFT true color LCD capacitive display with a resolution of 800×1280

Product Features 4

Capacitive screen, single point life up to 10 million times

Product Features 5

Multi-layer PCB design, stable quality

Product Features 6

Overvoltage protection circuit

Product Features 7

Support and management center to achieve two-way intercom

Product Features 8

Support unit door machine, wall machine call in intercom

SPEC

Resolution : 800×1280 System : Android NET protocol : TCP / IP

CPU : X7 quad core Display : 8-inch TFT screen Material : ABS

Webcam : 300,000 pixels (optional) Ringing : Electronic bell ≥70dB Frequency : 1G Hz

RAM : 1G DDR-Ⅲ ROM : 8GB Nand Flash Installation : Desktop

Size : 200*218*54mm
