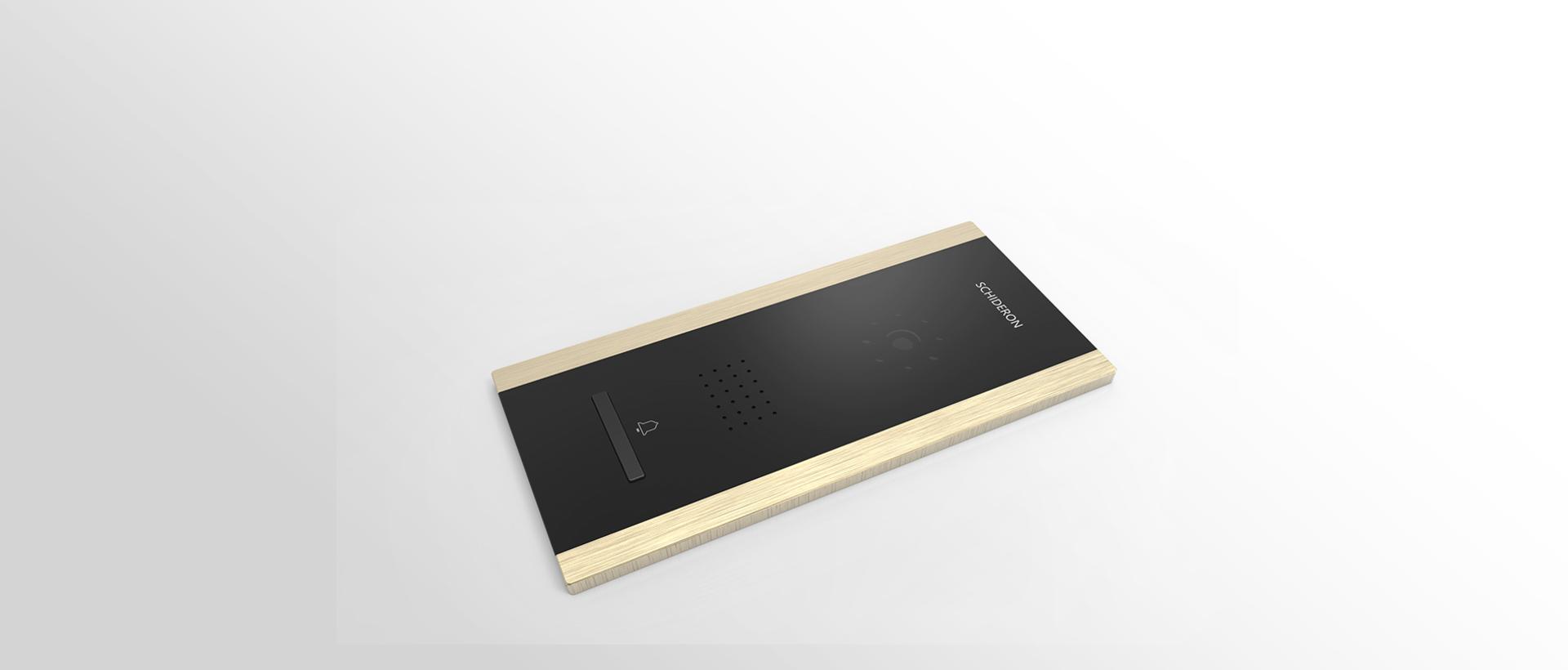

CODE:DDT-006C-HD-X1S

DETAILS

Main function introduction

• Aluminum alloy explosion-proof appearance • image retention function • call the indoor machine, achieve secondary confirmations / intercom • indoor surveillance, management center surveillance • HD camera, night LED lighting • built-in IC access control module, Support for credit card unlock • Management of batch authorization cards • Support for magnetic(on/off) status detection and delay alarm • Support for open / closed type electronic lock access

SPEC

System : WinCE NET protocol : TCP / IP Bus : S-Net

CPU : Schideron S2e Power : DC 12V Working current : ≤180mA

Current : ≤150mA Temperature : -10℃~+50 ℃ Operating HUM : 20%~85%

Material : ABS+ Aluminum Webcam : 1.3 million pixels Ringing : Bell≥70dB

Frequency : 720M Hz RAM : 256M DDR-Ⅲ ROM : 4GB Nand Flash

Installation : Embedded Thickness : 7mm Size : 106*224*37(mm)

Dust proof : IP55

FEATURES

DDT-006B-HD-X1S adopts SCHIDERON's S2e series CPU chip, with a CPU frequency of 720MHZ and a memory of ddr3/256m.It has the advantages of fast operation speed, high quality of audio and video, low power consumption of the whole chip and high operation stability to meet the needs of future upgrade.High - definition digital camera with clear camera quality.The new noise suppression technology can obtain high reducing acoustic quality effect in different environments.The appearance craft is high quality, generous and high-grade.One key to call the indoor extension, simple and clear operation instructions for users to use simple and direct.Overall performance and technical indicators in the industry leading level.

Video intercom - outside door intercom

DDT-006C-HD-X1S(Simplified Chinese) 2018 / 06 / 15 3.37M

DDT-006C-HD-X1S(Traditional Chinese) 2018 / 07 / 19 2.81M
