FEATURES

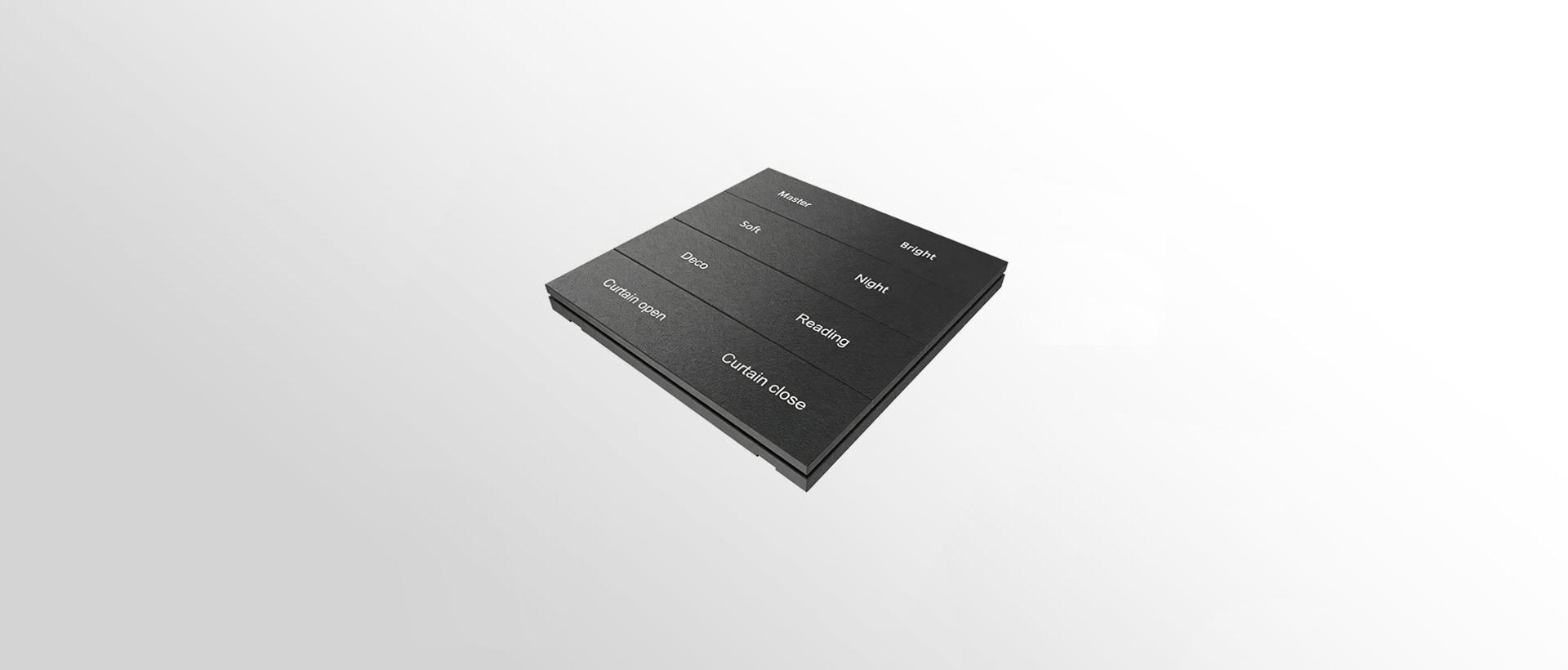

The LEGGO Series Protocol Keypad Panel is built on the core advantages of high flexibility and low-cost retrofitting, delivering an efficient control solution tailored for smart building and home automation scenarios. The product supports flexible configuration with 2 to 8 buttons, allowing free selection to match diverse application needs. Featuring an innovative detachable design that separates the button module from the base plate, the panel enables quick scene adaptation—no need to modify the pre-installed back box; simply swap the button module to precisely control lighting, curtains, HVAC, and more. The panel excels equally in aesthetic quality and safety. At just 8.5mm thick, its ultra-slim profile paired with large, elegantly designed buttons complements modern minimalist interiors while delivering a smooth, comfortable touch. The frame and buttons are crafted from high-grade aluminum alloy, offering exceptional durability, corrosion resistance, and long-term stability—resistant to deformation and discoloration even after extended use. Furthermore, the product operates reliably across a wide temperature range from 0°C to +65°C, ensuring stable performance in both extreme heat and cold, making it a safe and dependable choice for long-term control in various smart spaces. In terms of installation and power supply adaptability, the LEGGO Series Protocol Keypad Panel is engineered to meet the demands of construction projects and diverse power scenarios. Its European-standard-compliant design seamlessly fits mainstream building back box specifications. Whether for large-scale deployment in new construction or intelligent upgrades in existing spaces, the panel can be directly embedded without the need for additional wall cutting or back box repositioning—significantly reducing installation complexity, retrofitting costs, and project timelines. Additionally, the panel supports a wide DC 9–28V input, flexibly adapting to different power supply systems across various smart projects. This broad voltage compatibility further enhances the product's adaptability and deployment flexibility across a wide range of application scenarios.

DETAILS

SPEC

Border materials : Aluminum Alloy Material Voltage : DC 9~28V Newsletter : S-Net Bus Protocol

Working current : 30mA min / 840mA max Temperature : 0°C~+65°C (+32F~+149F) Storage TEM : -20°C~+80°C (-4F~+176F)

Material : Plastic material with UL94-V0 flame retardancy rating Humidity : 10%–90% RH (non-condensing) Installation : Fits standard back boxes

Size : 86mm×86mm×8.5mm
